High-Quality Activated Carbon Production with Activation Furnace,Steam activation furnace

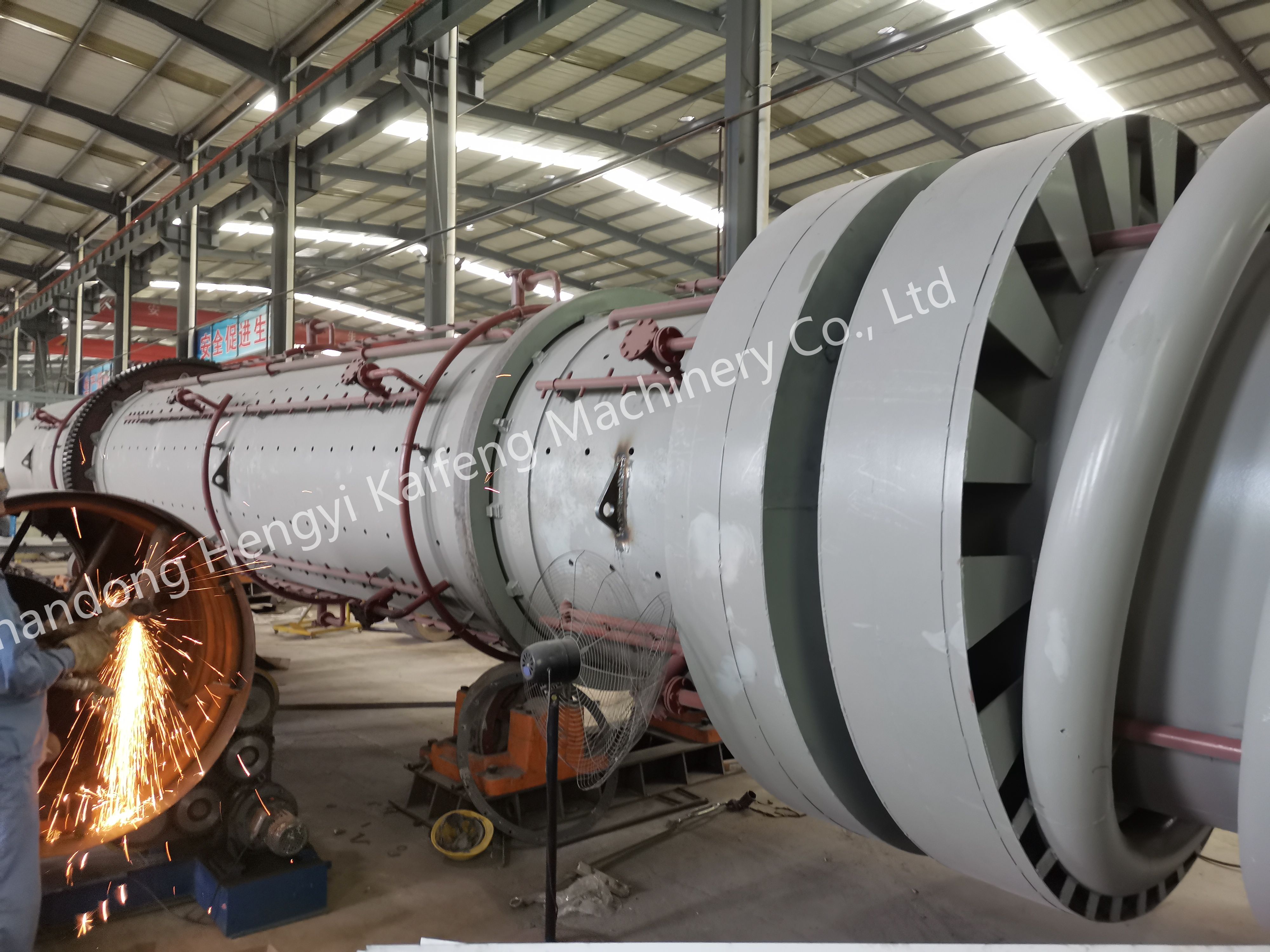

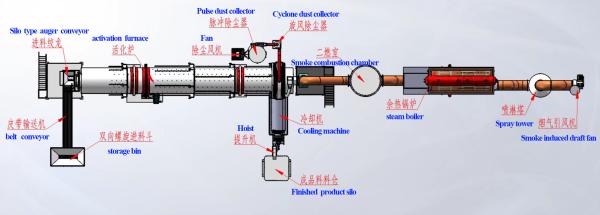

The following figure shows the activated carbon activation furnace, which is composed of multiple systems such as the feeding system, converter high-temperature heating system, steam system, flue gas treatment system, cooling system, etc. The carbonized material enters the furnace through the conveying system for high-temperature heating. When the temperature reaches a certain level, a certain amount of water vapor is sprayed on the surface of the carbonized material to make holes in the high-temperature state, and the activated carbon product is made, Afterwards, it can be packaged and stored after being cooled by the cooling system.

Because the activated carbon activation furnace is heated by high-temperature physical method and steam is sprayed into the hole, the furnace body must ensure continuous operation for 24 hours to ensure uniform heating of materials. If the furnace suddenly stops, it must be ensured that the furnace materials are cleaned before stopping, otherwise it will seriously affect the service life of the furnace body.

The interior of the activation furnace is made of refractory bricks and cast materials, which prevent the materials from coming into contact with the cylinder. The temperature of the furnace body is stored and controlled better, producing high-quality activated carbon. The temperature inside the furnace reaches the standard heating temperature of coconut shell carbonized material inside the furnace: between 900 and 1100 ℃.

The appearance of the finished activated carbon is obtained through our crushing and screening system to obtain the specified material.

Shandong Hengyi Kaifeng Machinery Co., Ltd. was founded in 1951, the company is located in the southwest of Shandong Province, Sishui City West Economic and Technological Industrial Park, a total area of more than 30,000 square meters, superior geographical location, west of Kongmeng cultural city Qufu, north by the head of the five mountains of Mount Tai, east of the East Sun City Rizhao, south of China's sixth largest freshwater lake Weishan Lake, Xinshi Railway, Rilan Expressway, 327 National Highway across the territory, Beijing-Taiwan Expressway, Beijing-Shanghai High-speed Railway, Jining Qufu Airport is within easy reach, the traffic is very convenient, The factory has standardized production workshops, office R & D comprehensive buildings, product warehouses and other facilities, and the departments are: production department, sales department, R & D department, finance department, administration department and other departments, to create high quality products and high-quality after-sales service for every user in an all-round way.

Shandong Hengyi Kaifeng Machinery Co., Ltd. has many years of experience in machinery and equipment manufacturing, won a number of national patents, has independent product import and export rights, and passed ISO-9001 national quality system certification, is a collection of design, manufacturing, sales, installation as one of the national high-tech enterprises, provincial "gazelle" enterprises, provincial "specialized, specialized and new" and municipal manufacturing single champion enterprises. It has five branches: Shandong Hengyi Kaifeng Machinery Co., Ltd. Yangliu Branch, Sishui Hengjie Machinery Co., Ltd., Sishui Kaijie Automation Co., Ltd., Jinan Hengyi Kaifeng Automation Technology Co., Ltd., Jining Yifeng Machinery Co., Ltd.

The company has always been committed to the research and development and manufacturing of high-quality equipment, actively responding to the national "Belt and Road" policy layout overseas, the products are sold to more than 20 provinces, municipalities and autonomous regions in the country, and exported to Russia, Indonesia, the Philippines, Malaysia, Kenya, Nigeria, Thailand, India, South Korea, Japan, Angola, Sudan and other countries. The main products are: activated carbon production special complete sets of equipment, carbonization furnace, activation furnace, crushing and screening equipment, environmental protection equipment, flour machinery, grain equipment, dust removal equipment, feed equipment and automation supporting equipment.

All employees of Shandong Hengyi Kaifeng Machinery Co., Ltd. welcome new and old users from all walks of life to visit and guide.
